CaF2

Related link:  CaF2 Windows and Lenses



CaF2 Characteristics & Transmission Curve



Calcium Fluoride can be used in the ultraviolet, visible and infrared spectral regions. Calcium Fluoride has a transmission above 90% between 0.25 and 7µm.



Calcium Fluoride is twice as hard as Barium Fluoride and also less susceptible to thermal shock. However, it is commonly used in cryogenically cooled thermal imaging systems. It is less expensive than Barium Fluoride. CaF2 is diamond turnable.



  Property

 Specification

  Transmission Range

 0.13µm to 7.0µm

  Density

 3.18 g/cm3

  Thermal Expansion

 18.85 x 10-6 /°C

  Surface Finish

Polishes of 20-10 scratch-dig are mostly specified for use in UV & visible applications. Typical specifications for surface quality in the infrared are a 40-20 scratch dig in the 0.75 to 3µm spectral region & 60-40 scratch-dig for the 3-7µm area.

  Surface Figure

In the UV & Visible spectral regions, surface figure ranges from 1/10 wave to 1/4 wave @ 0.6328µm. In the infrared, typical required surface figure ranges from 1/4 wave to 2 waves @ 0.6328 µm & are specified depending on the system performance requirements.

  AR Coating Options

Available coatings for CaF2 include BBAR for 0.8 to 2.5µm, 3 to 5µm or the 1 to 5µm spectral regions.

  Typical Applications

Cryogenically cooled thermal imaging, Astronomical, Microlithography, Excimer Laser applications.

  Products

  Manufactured

Lenses, Aspheric lenses, windows, Optical Beamsplitters, Optical Filters, Wedges, Prisms.



Wavelength (µm)

Index of Refraction (n)

1.060

1.428

2.058

1.424

4.000

1.410

5.893

1.387

8.251

1.344

9.429

1.316

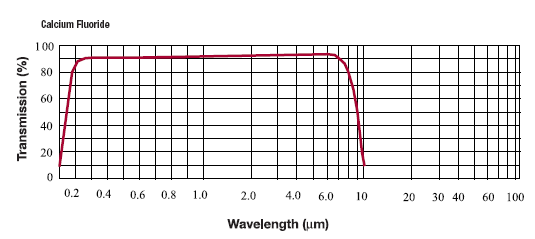

 CaF2 Transmission Curve
