LiNbO3 Pockels Cells

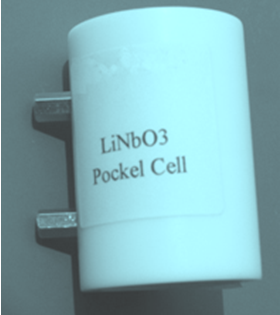

LiNbO3 Pockels CellLiNbO3 Pockels Cells address wavelengths of at least 1064nm. With an electric field applied transverse to the direction of light propagation, LiNbO3 cells can be configured to operate at a lower voltage than comparable KD*P cells. LiNbO3 can also be a good choice for infrared wavelengths as long as 4.0 µm, though half-wave voltage increases at those wavelengths.


Bluebean Optical's LiNbO3 Pockels Cells Features:

- Low Transmission Loss

- High Extinction Ratio

- High Damage Threshold

- Super-Polished Optical Faces

- Precise Crystal Orientation


LiNbO3 Pockels Cells Specifications:


  Crystal Material

LiNbO3 single crystal, optical grade

  Aperture Diameter

8.5 mm

  QuarterWave Voltage@1064 nm

1.65KV

  Extinction Ratio @ 1064 nm

> 300 : 1

  Transmission

> 98 %

  Repetition Rate

<1kHz

  Damage Threshold

> 200 MW /cm2@1064 nm,10 ns

  Wavefront Distortion

< λ/4

  Capacitance

20 pF

  Outer Diameter

25.4mm
