LiNbO3

Related link:  LiNbO3 Crystal Components



LiNbO3 Crystal Basic Properties


LiNbO3 Crystal Structure and Physical Properties

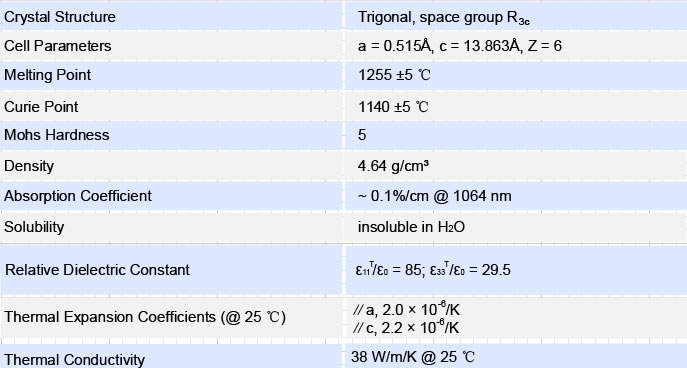

LiNbO3 Physical Properties


LiNbO3 Crystal Linear Optical Properties

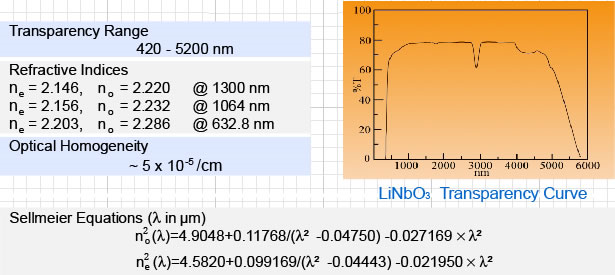

LiNbO3 Linear Optical Properties


LiNbO3 Crystal Nonlinear Optical Properties

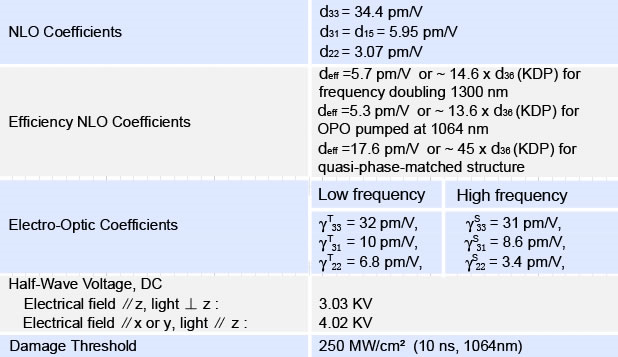

LiNbO3 Nonlinear Optical Properties


Lithium Niobate (LiNbO3) Crystal Series



MgO:LiNbO3



Compared with LiNbO3 crystal, MgO:LiNbO3 crystal exhibits its particular advantages for NCPM frequency doubling (SHG) of Nd:Lasers, mixing (SFG) and optical parametric oscillators (OPOs). The SHG efficiencies of over 65% for pulsed Nd:YAG lasers and 45% for cw Nd:YAG lasers have been achieved in MgO:LiNbO3 crystals, respectively. MgO:LiNbO3 is also a good crystal for optical parametric oscillators (OPOs) and amplifiers (OPAs), quasi-phase-matched doublers and integrated waveguides.

MgO:LiNbO3 has similar effective non-linear coefficients to pure LiNbO3. Its Sellmeier equations (for MgO dopant 7 mol%) are:



n2o(λ)=4.8762 + 0.11554 / (λ2– 0.04674) – 0.033119 × λ2 (λ in μm)

n2o(λ)=4.5469 + 0.094779 / (λ2– 0.04439) – 0.026721 × λ2



High quality MgO:LiNbO3 crystals for various non-linear optics (NLO) and E-O applications: The typical size of MgO:LiNbO3 crystal is (3-10) x (3-10) x (3-10) mm for OPOs and OPAs and frequency doubling and mixing, and 20x20x1 mm for waveguide substrates. Other specifications and AR-coatings for MgO:LiNbO3 are available upon request.



Other Ions Doped Lithium Niobate Crystal



ZnO:LiNbO3 crystal has the advantages of high damage threshold, non-critical phase-matching and good physical and chemical properties like MgO:LiNbO3 . It has better optical quality and lower absorption loss than that of MgO:LiNbO3. Therefore, it is another candidate for frequency doublers & mixers, OPOs & OPAs, and quasi-phase-matched doublers and integrated optics.

Fe:LiNbO3 crystal is a kind of excellent photorefractive crystal for phase conjugations and holographic grating and recording.



Different ion doped concentrations of MgO:LiNbO3, ZnO:LiNbO3 and Fe:LiNbO3 crystals  and growth condition are available upon request. Contract crystal growths of other kinds of LiNbO3 crystal series are also available.
