Endcap

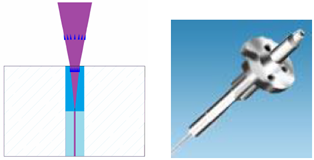

EndcapBluebean Optical's Endcap product Features:



- High power handling

- Low insertion loss

- Low backreflection

- Telcordia Compliant

- RoHS Compliant



Endcap

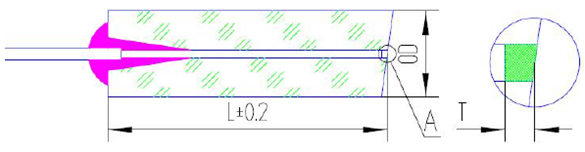

Endcap Specifications:


 Central Wavelength

 1310 nm, 1550 nm, or Specify

 Operation Wavelength Range

 ±40 nm

 Outer Diameter

 1.0 mm, 1.6 mm, 1.8 mm, 2.2 mm

 Polishing Angle

 6 Deg., 8 Deg., 10 Deg., 12 Deg. or Specify

 Endcap Length

 0.1 mm, 0.2 mm, 0.3 mm or Specify

 Tolerance

 ±0.05 mm or Specify

 Fiber Type

 Corning HI 1060, SMF-28E or Specify

 Fiber Length

 2.0m or Specify

 Tensile Load

 5N

 Power Handling

 20W

 Operation Temperature

 -5 to +70°C

 Storage Temperature

 -40 to +85°C



Ordering Information:



Description

Endcap



Part Number

ECP-A-B-C-D-E-F-G-H

A= Wavelength

E= Outer Diameter

   1310 for 1310nm±40nm

   100 for 1.0m

   1550 for 1550nm±40nm

   160 for 1.6m

   13/15 for 1260~1620nm

   180 for 1.8m

B= Endcap Length

   220 for 2.2m

   01 for 0.1mm

F= Fiber Type

   02 for 0.2mm

   900 for 900um Buffer Fiber

   03 for 0.3mm

G= Fiber Length

   SS for Specify

   2.0 for 2.0m

C= Tube Length

   SS for Specify

   06 for 6.0~6.5mm

H = Connector

   SS for Specify

   FC/PC,FC/APC,SC/PC,SC/APC,LC, or Specify

D= Polishing Angle

   06D for 6.0 Deg.

   08D for 8.0 Deg.

   10D for 10 Deg.

   12D for 12 Deg.
